BSI-025: Altered States and Queen Victoria

Effective Date

General Limit States Design, Hygrothermal Analysis

At a basic level a wall is an environmental separator.  It keeps the outside out and the inside in.  Easy to say, not always easy to do.

To function as an environmental separator it needs to meet specific “performance objectives”.  The most elegant list of “performance objectives” comes from Hutcheon[1] and are found in Table 1.


A wall is never perfect.  Sometimes the outside gets into the thing that separates the inside from the outside and you have to decide whether to kick it back or let it through.  Sometimes the inside gets into the thing that separates the inside from the outside and you have to decide whether to kick it back or let it through.  How much you kick back and let through depends on where you are, what is going on inside, what the assembly is made out of and how much energy is available.

Where you are establishes the external environmental load.  It rains more in Seattle than in Las Vegas.  You probably need more rain control in Seattle than in Las Vegas.  The rain exposure is an external environmental load (Figure 1).

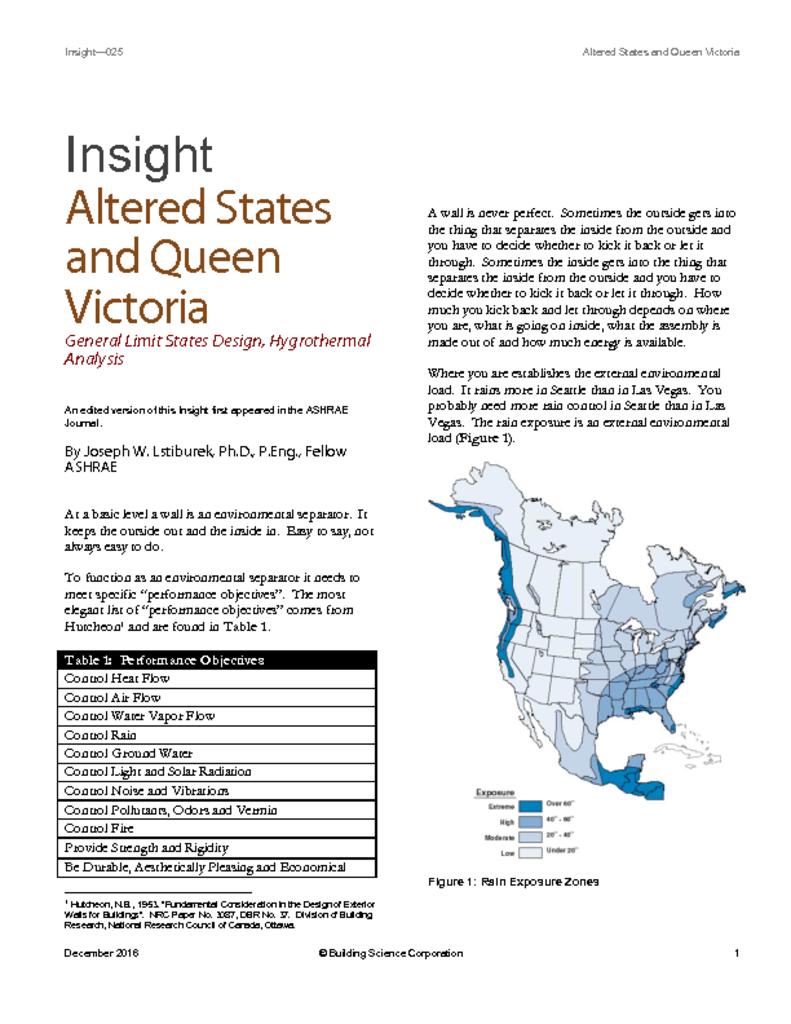

Figure 1: Rain Exposure Zones

There is more.  It is hot and humid in Miami.  It is cold and dry in Edmonton.  Walls in Miami look different than walls in Edmonton.  The temperature and humidity outside is an external environmental load.  They are referred to as “hygrothermal loads”.  Figure 2 is a map of “hygrothermal regions”.  If Figure 2 looks somewhat familiar, it should, it is based on the Koppen  climate classification system (Figure 3).  The model building codes “Climate Classes” are derived from Figure 2[2] (Figure 4).

Figure 2: Hygrothermal Regions

Figure 3: North American Koppen  Climate Classification

Figure 4: Climate Classes – Model Building Codes

The external hygrothermal loads can be narrowed beyond the “regional”.  Schumacher[3] developed a graphical approach combining the psychrometric chart with hourly climate data.  Check out Figure 5a, 5b, 5c, and 5d for Los Angeles, Minneapolis, Las Vegas and Seattle respectively.  This is what you get when you plot 8760 points on a psychrometric chart representing hourly temperature and relative humidity for an entire year.[4]

Figure 5a

Figure 5b

Figure 5c

Figure 5d

Figure 5: “Canadian Vitruvius” – Schumacher combining the psychrometric chart with hourly climate data…

What is going on inside establishes the internal environmental load.  A warehouse is different than an apartment.  An apartment is different than a hospital.  The different internal environmental loads can be divided into interior climate classes based on temperature, humidity and air pressure.

The “loads” establish the necessary “load resistance”.  The “load resistance” needs to exceed a “limiting state”.  Structural engineers recognize this approach as “limit states design”.  In structural engineering a “limit state” would consider compressive strength, shear, tensile strength, bending moment and so on.  In hygrothermal analysis a “limit state” would consider mold, decay, corrosion, freeze-thaw and so on.  I call the approach “generalized limit states design” – with both apologies and credit to the structural engineering community (Table 2).[5]

The environmental loads are listed in Table 3.  The analysis parameters are listed in Table 4 and the limit states are listed in Table 5.

Analysis parameters?  Think “things that trash other things”.  In other words “damage functions”.  The big three are water, heat, and ultra-violet radiation.  Of the three, water is the worst.[6]  Water movement cannot be understood without also simultaneously looking at heat flow – hence the term “hygrothermal analysis”.

The big question in hygrothermal analysis is how wet can something be for how long before you get into trouble?  And of course the answer is “it depends” and no one can agree.[7]  Things are different now.  We are no longer building buildings out of rocks and 1,000 year old trees.

We are building out of engineered wood which is pretty much an insult to both engineers and to wood.  I call it “was wood”.  It was wood once…but not anymore.  We don’t even see plywood much anymore.  Oriented strand board (OSB) is ubiquitous (Photograph 1 and Photograph 2).  I call OSB the spam of wood.  I call spam the OSB of luncheon meats….  Back in the old days we used to go to places called forests and cut trees down and cut them in to boards.  We would take these boards and build things called boats and put them in the water and sail them around the world.  Try doing that with OSB.


Photograph 1: Oriented Strand Board – take a fast growing “teenager” tree and flake it, add the Colonel’s eleven secret herbs and spices, smoosh it together under heat and pressure and coat it with “water stay away stuff”.(c) Matthias Kabel from the Wikipedia Commons;


Photograph 2: Engineered Wood – Get used to it.  It is not plywood.  It is not a 1,000 year old tree.  But it does work if you control the micro environment it sees.  This is an entirely different way of looking at things.  Back in the day we would change the material to suit a hostile environment.  Today we have to change the environment to suit the material.(c) C. Sander from the Wikipedia Commons;

It gets worse.  We are insulating.  Yup.  And not just a little.  A lot.  And probably will be adding even more.  Not much energy available to dry things if they get wet.  We used to have so much energy flow across a wall assembly that it was “freeze dried” in the winter and “kiln dried” in the summer.  The consequences only now are being appreciated.  There is no such thing as a free thermodynamic lunch.

So what are the odds of going back to uninsulated assemblies built out of rocks and 1,000 year old trees?  Not going to happen.  We are learning to love engineered wood and are coming to terms with the reduced energy flow.  We are developing the analysis parameters and the safety factors based on experience, observation and experiment.  It has not been easy.  Ugly is a word that comes to mind.  Sometimes we get it right.  Sometimes we get it wrong (Photograph 3).


Photograph 3:  Getting It Wrong – Water sensitive material in a highly insulated assembly with poor water management and a low drying potential.  We needed a “pan flashing” under the window and a water control layer with a drainage gap over the OSB to control the wetting and no interior vapor barrier to permit inward drying.  Can we say the 1800’s are calling with your safety factor….

Out of the hygrothermal analysis come “performance metrics” such as windows requiring to meet specific water resistance when tested according to ASTM E1105 – Standard Test Method for Field Determination of Water Penetration of Installed Exterior Windows, Skylights, Doors, and Curtain Walls, by Uniform or Cyclic Static Air Pressure Difference at a pressure difference of 150 Pa or a building enclosure requiring to meet an air leakage resistance of 2.0 l/s/m2 @ 75 Pa when tested according to ASTM E779 – Standard Test Method for Determining Air Leakage Rate by Fan Pressurization.

Note that the “performance metrics” should be based on analysis and limit states.  And that is the rub.  We are struggling with the analysis and we can’t agree on the limit states and the safety factors.  Where is Queen Victoria when you need her?[8]
